1. Name of Property
historic name: Spokane River Bridge at Long Lake Dam
other names/site number: WSDOT 231/101
2. Location
street & number: State Route 231, spanning the Spokane River [ ] not for publication
city or town: Reardan [x] vicinity
state: Washington code: WA county: Lincoln & Stevens code: 043,065 zip code: 99029
3. State/Federal Agency Certification
As the designated authority under the National Historic Preservation Act, as amended, I hereby certify that this [x] nomination [_] request for determination of eligibility meets the documentation standards for registering properties in the National Register of Historic Places and meets the procedural and professional requirements set forth in 36 CFR Part 60. In my opinion, the property [x] meets [_] does not meet the National Register criteria. I recommend that this property be considered significant [] nationally [x] statewide [x] locally. ([_] See continuation sheet for additional comments.)
signed Mary M. Rampass 2/8/95
Signature of certifying official/Title Date
State of Federal agency and bureau
In my opinion, the property [_] meets [_] does not meet the National Register criteria. ([_] See continuation sheet for additional comments.)
northeastnortheast Signature of certifying official/Title Date
State or Federal agency and bureau
'4. National Park Service Certification'
I hereby certify that the property is:
[x] entered in in the National Register.
[_] See continuation sheet.
[_] determined eligible for the National Register
[_] See continuation sheet.
[_] determined not eligible for the National Register.
[_] removed from the National Register.
[_] other, (explain:)
Pel R. Luzman?? 4/24/95
Signature of the Keeper Date of Action
Name of Property: Spokane River Bridge at Long Lake Dam Ford County and State: Lincoln/Stevens, Washington
5. Classification
Ownership of Property: public-State
Category of Property: structure
Number of Resources within Property: 1 structure
Number of contributing resources previously listed in the National Register: 0
Name of related multiple property listing: "Bridges of Washington State (1941-1950)", "History Bridges and Tunnels of Washington State"
6. Function or Use
Historic Functions (Enter categories from instructions)
Transportation/road-related/bridge
Current Functions (Enter categories from instructions)
Transportation/road-related/bridge
7. Description
Architectural Classification (Enter categories from instructions)
Other: concrete arch
Materials (Enter categories from instructions)
foundation:
walls:
roof:
other: concrete
Narrative Description (Describe the historic and current condition of the property on one or more continuation sheets.)
Continuation Sheet
Section number 7 Page 1
7. Physical Description
Built in 1949, the Spokane River Bridge at Long Lake Dam crosses its namesake downstream from the Washington Water Power Company’s Long Lake Dam. This portion of the Spokane River, which forms the boundary between Lincoln County on the south and Stevens County on the north, is extremely rugged and remote. The river gorge is typified by imposing cliffs rising dramatically above the Long Lake Dam and powerhouse.
The bridge consists of two 40-foot-long concrete girder approach spans on the south end; a 211- foot-long open spandrel arch span; and four 40-foot-long and one 30-foot-long concrete girder approach spans on the north end, for a total length of 481 feet including overhangs and bridge seats. This is the longest concrete arch span constructed by the state in the 1941-1950 period.
The approach spans each consist of two reinforced concrete girders with parabolic soffits. Floor beams, located at approximately 10 to 12 feet on centers between the girders, support the roadway slab on both the approach and arch spans. The floor beams cantilever beyond the girder to support slab, curbs, sidewalk, and handrail.
The graceful concrete arch section consists of two reinforced concrete ribs spanning 200 feet between skewbacks, with a rise of 44 feet and an overall length of 211 feet. The ribs support columns spaced at 23-foot centers, which in turn support the roadway girders, floor beams, and roadway slab. The arch curvature is formed by double center circular curves.
8. Statement of Significance
Applicable National Register Criteria
(Mark ‘“x"" in one or more boxes for the criteria qualifying the property for National Register listing.)
[_] A Property is associated with events that have made a significant contribution to the broad patterns of our history.
[_] B Property is associated with the lives of persons significant in our past.
[x] C Property embodies the distinctive characteristics of a type, period, or method of construction or represents the work of a master, or possesses High artistic values, or represents a significant and distinguishable entity whose components lack individual distinction.
[_] D Property has yielded, or is likely to yield, information important in prehistory or history.
Criteria Considerations (Mark “x” in all the boxes that apply.)
Property is:
[_] A owned by a religious institution or used for religious purposes.
[_] B removed from its original location.
[_] C a birthplace or grave.
[_] D a cemetery.
[_] E a reconstructed building, object, or structure.
[_] F a commemorative property.
[x] G less than 50 years of age or achieved significance within the past 50 years.
Narrative Statement of Significance
(Explain the significance of the property on one or more continuation sheets.)
Areas of Significance (Enter categories from instructions):
Engineering
Period of Significance:
1949
Significant Dates:
1949y Hagman, contractor
Significant Person (Complete if Criterion B is marked above):
n/a
Cultural Affiliation:
n/a
Architect/Builder
Washington State, Dept. of Highways
Henry Hagman, contractor
9. Major Bibliographical References
Bibilography
(Cite the books, articles, and other sources used in preparing this form on one or more continuation sheets.)
Previous documentation on file (NPS):
[_] preliminary determination of individual listing (36 CFR 67) has been requested
[_] previously listed in the National Register
[_] previously determined eligible by the National Register
[_] designated a National Historic Landmark
[_] recorded by Historic American Buildings Survey #____
[_] recorded by Historic American Engineering Record #____
Primary location of additional data:
[_] State Historic Preservation Office
[x] Other State agency
Bridge Condition Unit, WSDOT, Olympia, WA;
[_] Federal agency
[_] Local government
[x] University Archaeological & Historical
Services, Eastern Washington University, Cheney, WA
[_]Other
Name of repository: ___ Name of Property: Spokane River Bridge at Long Lake Dam
County and State: Lincoln/Stevens, Washington
10. Geographical Data
Acreage of Property less than one acre
UTM References (Place additional UTM references on a continuation sheet.)
11/436270/5298530
Zone —Easting-Northing
Verbal Boundary Description: The property is a bridge, measuring 486 feet, spanning the Spokane River on State Route 231, connecting Lincoln and Stevens counties, Washington.
(Describe the boundaries of the property on a continuation sheet.)
Boundary Justification: The boundary of the property is the bridge itself. (Explain why the boundaries were selected on a continuation sheet.)
11. Form Prepared By
name/title: Robert H. Krier, J. Byron Barber, Robin Bruce, Craig Holstine
organization: AHS, Eastern Washington University
date: 5 December 1991
street & number: MS-168 Monroe Hall
telephone: (509) 359-2284
city or town: Cheney state: WA zip code: 99004
Additional Documentation Submit the following items with the completed form:
Continuation Sheets
Maps
A USGS map (7.5 or 15 minute series) indicating the property’s location.
A Sketch map for historic districts and properties having large acreage or numerous resources.
Photographs
Representative black and white photographs of the property.
Additional items
(Check with the SHPO or FPO for any additional items)
Property Owner (Complete this item at the request of SHPO or FPO.)
name:
street & number:
telephone:
city or town: state: zip code:
Paperwork Reduction Act Statement this information is being collected for applications to the National Register of Historic Places to nominate properties for listing or determine eligibility for listing, to list properties, and to amend existing listings. Response to this request is required to obtain a benefit in accordance with the National Historic Preservation Act, as amended (16 U.S.C. 470 et seq.).
Estimated Burden Statement: Public reporting burden for this form is estimated to average 18.1 hours per response including time for reviewing instructions, gathering and maintaining data, and completing and reviewing the form. Direct comments regarding this burden estimate or any aspect of this form to the Chief, Administrative Services Division, National Park Service, P.O. Box 37127, Washington, DC 20013-7127; and the Office of Management and Budget, Paperwork Reductions Projects (1024-0018), Washington, DC 20503. NPS Form 10-900-a OMB Approval No. 1024-0018 (6-86)
Continuation Sheet
Section number: 8,9 Page: 1
8. Statement of Significance
The Spokane River Bridge at Long Lake Dam is eligible for inclusion in the National Register of Historic Places under Criterion C. The structure is an outstanding example of a graceful concrete arch bridge, one of the few built during the decade of the 1940s. This structure is located in a remote part of eastern Washington, where rugged basalt cliffs present a pleasing contrast to the elegant lines of the bridge. Its use in this location enhances the natural beauty of the rugged environment in a particularly effective blend of a man-made structure with its natural surroundings. The structure is also significant as an example of innovative engineering technology in its use of the considère hinge.
Employment of a considère hinge at the skewbacks is featured in the arch design of the bridge. Under this system, the arch acts as a two-hinged arch to support the dead load of the structure. After all concrete in the superstructure is cast, the falsework is released and the arch ribs then support the total dead load of the structure. The arch rib steel is then welded together and the concreting of the hinge is completed, thus causing the arch to act as a fixed arch under live load conditions. The Spokane River Bridge at Long Lake Dam is the only concrete arch bridge built by Washington State in the 1940s using this system.
Clarence B. Shain was the Director of Highways at the time the Spokane River Bridge was built. George Stevens was the Bridge Engineer. Henry Hagman of Cashmere, Washington, builder of numerous bridges in the Pacific Northwest, was the contractor. The bridge was built for a cost of $215,400.
9. Major Bibliographic References
Washington State Department of Highways. Biennial Reports, 1948-1950, 1950-1952.
Washington State Department of Transportation (WSDOT). Spokane River Bridge at Long Lake Dam plans (layout), revision dated 4 February 1949, on file in the Bridge Preservation
Office, WSDOT, Olympia, Washington.
WSDOT. “Bridge Condition Card—Spokane River Bridge at Long Lake Dam,” 28 March 1949, on file in the Bridge Preservation Office, WSDOT, Olympia, Washington.
UNITED STATES DEPARTMENT OF THE INTERIOR
NATIONAL PARK SERVICE
NATIONAL REGISTER OF HISTORIC PLACES
EVALUATION/RETURN SHEET
REQUESTED ACTION: NOMINATION
PROPERTY NAME: Spokane River Bridge at Long Lake Dam
MULTIPLE NAME: Bridges of Washington State MPS
STATE & COUNTY: WASHINGTON, Lincoln
DATE RECEIVED: 4/18/95 DATE OF PENDING LIST:
DATE OF 16TH DAY: DATE OF 45TH DAY: 6/02/95
DATE OF WEEKLY LIST:
REFERENCE NUMBER: 95000628
NOMINATOR: STATE
REASONS FOR REVIEW:
| N |DATA PROBLEM: |N |LANDSCAPE: |N |LESS THAN 50 YEARS: |Y |
| N |PDIL: |N |PERIOD: |N |PROGRAM UNAPPROVED: |N |
| Y SAMPLE: |N SLR DRAFT: |N NATIONAL: |N |
COMMENT WAIVER: N
[x] ACCEPT [_] RETURN [_] REJECT 5-24-95 Date
ABSTRACT/SUMMARY COMMENTS:
The Spokane River Bridge at Long Lake Dam is significant under NR Criterion C, as a good intact example of bridge construction (concrete arch) from the period 1940-1950.
[The justification for exceptional significance relies on the fact that the nomination was the result of a comprehensive study of highway bridge construction in Washington during the period 1941 to 1950. The MPS cover for Washington State Highway Bridges, 1940-1951, itself an addendum to the earlier Historic Bridges and Tunnels In Washington State thematic nomination, established a succinct context for highway bridge construction in the State from 1941 to 1950; a period greatly influenced by a combination of war-time constraints, evolving technological advances, and changing aesthetic considerations. The eligible properties nominated under this cover document were subjected to an evaluation methodology--undertaken by an advisory group of knowledgeable professionals--that involved numerically rating over 335 bridges completed during the period. The rating factors embraced engineering features, historic associations, and integrity concerns. The resulting list of eligible bridges reflected the significant defining characteristics of bridge construction during the period. As a result of the context study, sufficient scholarly analysis is available to assess the significance of the bridge within the context of highway construction in the state during the period.]
RECOM. /CRITERIA. Accept C
REVIEWER Paul R. Lusisman DISCIPLINE Historian
TELEPHONE 202 242 1628 DATE 5/24/95
DOCUMENTATION see attached comments Y/[N] see attached SLR Y/[N]
Spokane River Bridge at Long Lake Dam
WSDOT Bridge No. 231/101
Reardan (vicinity), Washington
Photographer: Washington State Dept of Trans.
11 July 1950
Washington State Department of Transportation
Bridge Condition Unit, Olympia, WA
Looking south
Lincoln and Stevens Counties WA
Spokane River Bridge at Long Lake Dam
WSDOT Bridge No. 231/101
Reardan (vicinity), Washington
Photographer: Washington State Dept of Trans.
11 August 1971
Washington State Department of Transportation
Bridge Condition Unit, Olympia, WA
Looking northeast [west?]
Lincoln and Stevens Counties WA
Spokane River Bridge at Long Lake Dam
WSDOT Bridge No. 231/101
Reardan (vicinity), Washington
Photographer: Washington State Dept of Trans.
photograph undated
Washington State Department of Transportation
Bridge Condition Unit, Olympia, WA
Looking east
Lincoln and Stevens Counties WA

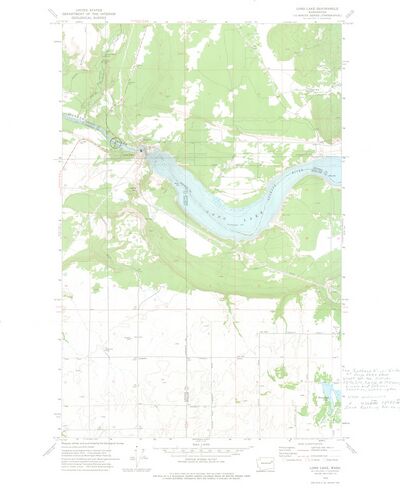

LONG LAKE QUADRANGLE
